NC4MP-B | Neutrik
XLR panel plug, 4 pole, gold-plated, 1.5 mm², AWG 16, zinc die casting, NC4MP-B
Unit Price (€ / pc.)
7.4494 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.45 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4494 €
10 pcs.
6.9020 €
25 pcs.
6.4260 €
50 pcs.
5.8191 €
*incl. VAT plus shipping costs
Subject to prior sale

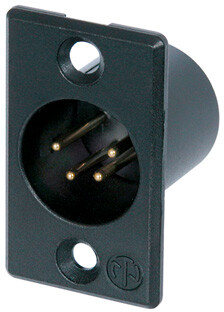

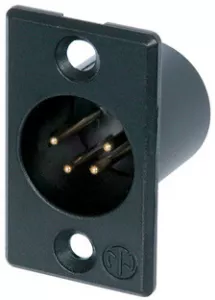

XLR-Chassis connector male, NC4MP-B, Neutrik
4 pole male receptacle, solder contacts, black metal housing, gold contacts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | latch locking | |
| Version | panel plug | |
| AWG cross-section | AWG 16 | |
| Assembly | chassis mounting | |
| Cable cross-section | 1.5 mm² | |
| Contact connection | solder connection | |
| Rated voltage | 50 V | |
| contact surface | gold-plated | |
| Enclosure | zinc die casting | |
| Pin number | 4 pole | |
| Colour | black | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
