NC4MDM3-H-B-1 | Neutrik

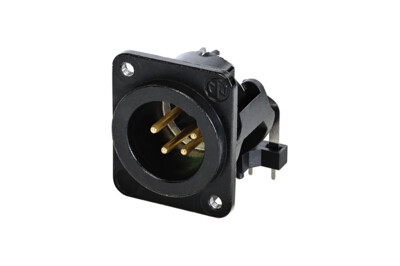

XLR panel plug connector, NC4MDM3-H-B-1, Neutrik

4 pole male receptacle, horizontal PCB mount, black housing, gold contacts, M3 mounting holes. Features a compact all metal housing with an ingenious duplex ground contact, which offers an excellent RF protection and shielding. Insert is NOT removable from shell.

Features

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• The male connector retention bar replaces the plastic design with an all metal version improving the pull-out force
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions
• Insert is NOT removable from shell
• PCB mount termination
