NC4MD-L-1 | Neutrik
XLR panel plug, 4 pole, silver-plated, 1.5 mm², AWG 16, zinc die casting, NC4MD-L-1
Unit Price (€ / pc.)
8.3776 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
10 pcs.
7.7588 €
25 pcs.
7.2233 €
50 pcs.
6.5450 €
*incl. VAT plus shipping costs
Subject to prior sale

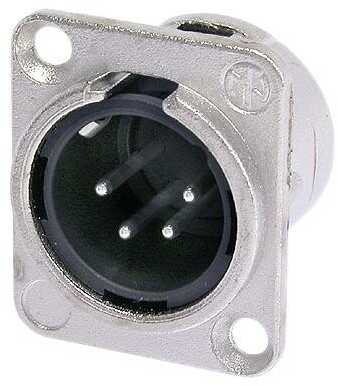

XLR-Chassis connector male, NC4MD-L-1, Neutrik
4 pole male receptacle, solder cups, Nickel housing, silver contacts. UL recognized component.
Features
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| AWG cross-section | AWG 16 | |
| Rated voltage | 50 V | |
| Assembly | chassis mounting | |
| Type of locking | latch locking | |
| Pin number | 4 pole | |
| Enclosure | zinc die casting | |
| Version | panel plug | |
| Cable cross-section | 1.5 mm² | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
