NC4FP-1 | Neutrik
XLR panel socket, 4 pole, silver-plated, 1.5 mm², AWG 16, zinc die casting, NC4FP-1
Unit Price (€ / pc.)
9.7580 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.76 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7580 €
10 pcs.
9.0321 €
25 pcs.
8.4133 €
50 pcs.
7.6279 €
*incl. VAT plus shipping costs
Subject to prior sale

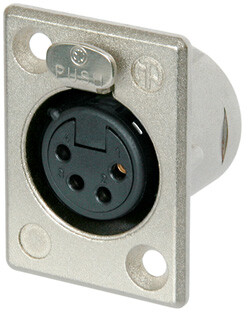

XLR-Chassis socket female, NC4FP-1, Neutrik
4 pole female receptacle, solder contacts, Nickel housing, silver contacts.
Features
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
- Short female receptacle
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Enclosure | zinc die casting | |
| AWG cross-section | AWG 16 | |
| Type of locking | latch locking | |
| Rated voltage | 50 V | |
| Assembly | chassis mounting | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Version | panel socket | |
| Rated current | 10 A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
