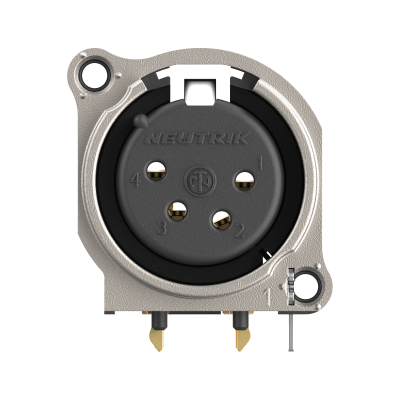

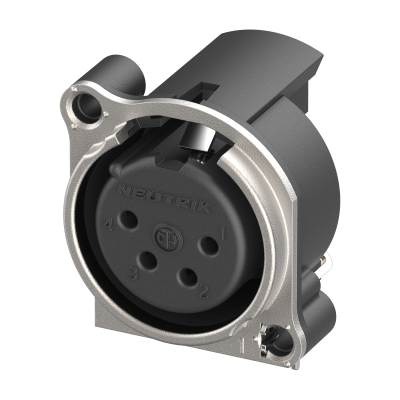

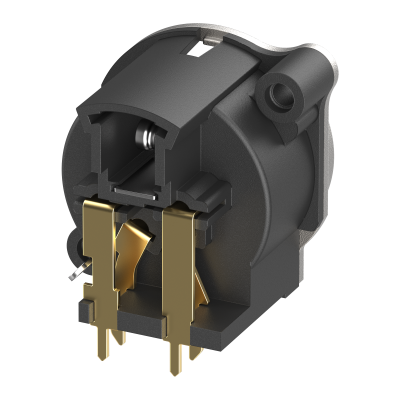

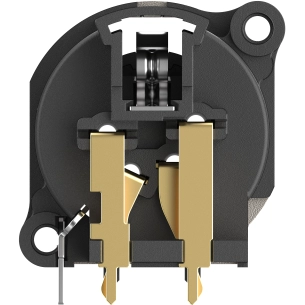

XLR panel socket connector, NC4FBH-0, Neutrik
4 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, retention spring instead of latch.
Features
- Smallest XLR receptacles, highest packing density
- Fork type female contact
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Housing flammability UL 94 V-0
- Steel retention spring instead of latch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Rated current | 6 A | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Pin number | 4 pole | |
| Version | panel socket | |
| Type of locking | retaining spring |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
