Panel socket, 4 pole, gold-plated, plastic, NC4FAV-AE
Unit Price (€ / pc.)
5.8548 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
5.85 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8548 €
10 pcs.
5.4264 €
25 pcs.
5.0456 €
50 pcs.
4.5696 €
*incl. VAT plus shipping costs
Subject to prior sale

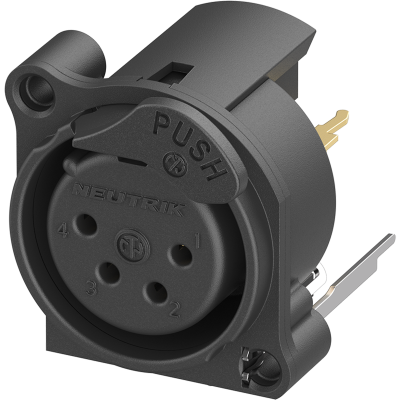

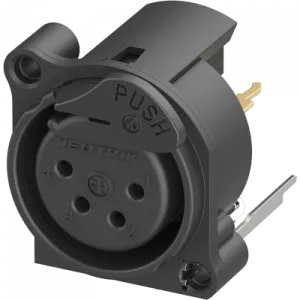

XLR panel socket connector, NC4FAV-AE, Neutrik
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed fork type contacts with hard gold plating and polished contact areas. Improved ESD performance with asymmetric non-metallic push.
Features
- Protection against electrostatic discharge and components due to compound material of the push tab
- Plastic housing
- Smallest XLR receptacles, highest packing density
- Polished contact areas and hard gold plating
- Fork type female contact
- Housing flammability UL94 V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Colour | black | |
| Rated current | 6 A | |
| Version | panel socket | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Enclosure | plastic | |
| contact surface | gold-plated | |
| Type of locking | latch locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
