NC4FAH-0 | Neutrik
XLR panel socket, 4 pole, gold-plated, polyamide, NC4FAH-0
Unit Price (€ / pc.)
5.0694 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
5.07 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0694 €
10 pcs.
4.6886 €
25 pcs.
4.3673 €
50 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale

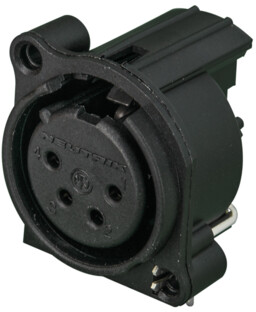

XLR-Chassis socket female, NC4FAH-0, Neutrik
4 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, retention spring instead of latch, color coding possible. New designed fork type contacts with hard gold plating and polished contact areas.
Features
- Fork type female contact
- Housing flammability UL 94 V-0
- Plastic housing, steel latch lock
- Polished contact areas and hard gold plating
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Colour | black | |
| Rated current | 6 A | |
| Version | panel socket | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Enclosure | polyamide | |
| contact surface | gold-plated | |
| Type of locking | retaining spring | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
