NC3MRX | Neutrik
XLR plug, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3MRX
Unit Price (€ / pc.)
10.0674 € *
Available: 5 pcs.
Total Price:
10.07 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0674 €
10 pcs.
9.3177 €
25 pcs.
8.6751 €
50 pcs.
7.8659 €
*incl. VAT plus shipping costs
Subject to prior sale

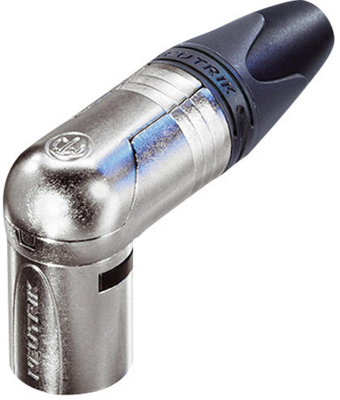

Male cable connector, NC3MRX, Neutrik
3 pole right angle male cable connector, nickel housing, silver contacts. The successor of this product offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features
- Extra slim right-angle connector
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Boot with polyurethane gland gives high protection to cable bending stresses
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Contact connection | solder connection | |
| Rated current | 16 A | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Cable diameter | 3.5-8 mm | |
| Rated voltage | 50 V | |
| Pin number | 3 pole | |
| Version | plug | |
| Enclosure | metal | |
| Type of locking | snap lock | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
