NC3MRX-BAG | Neutrik
XLR plug, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3MRX-BAG
Unit Price (€ / pc.)
11.5192 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.52 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5192 €
10 pcs.
10.6624 €
25 pcs.
9.9246 €
50 pcs.
8.9964 €
*incl. VAT plus shipping costs
Subject to prior sale

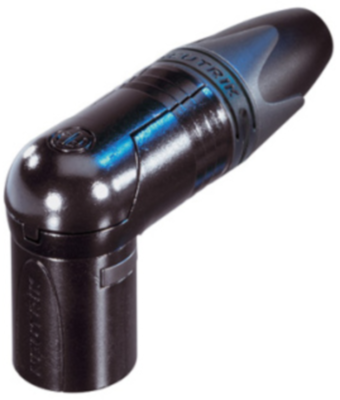

XX cable connector, NC3MRX-BAG, NEUTRIK
3 pole right angle male cable connector, black metal housing, silver contacts.
Features
- Extra slim right-angle connector
- Sleek and ergonomic design - valuable and hand
- 7 selectable cable outlet positions
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Pin number | 3 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| Enclosure | metal | |
| Colour | black | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Cable cross-section | 2.5 mm² | |
| AWG cross-section | AWG 14 | |
| Cable diameter | 3.5-8 mm | |
| Rated voltage | 50 V | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
