NC3MDX-TOP | Neutrik

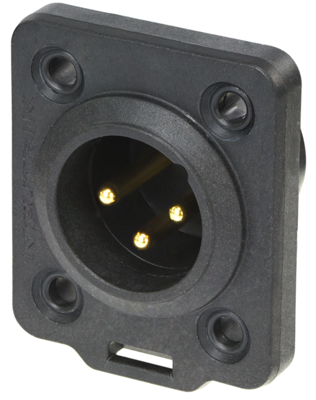

XLR panel plug, 3 pole, gold-plated, NC3MDX-TOP
Unit Price (€ / pc.)
7.6636 € *
Available: 47 pcs.
Total Price:
7.66 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6636 €
10 pcs.
7.0924 €
25 pcs.
6.6045 €
50 pcs.
5.9857 €
*incl. VAT plus shipping costs
Subject to prior sale
Male chassis connector, NC3MDX-TOP, Neutrik
3 pole male chassis connector, TRUE OUTDOOR PROTECTION (TOP). IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.
Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Uses high impact UV resistant materials
- Maintains sealing when in use and when disconnected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel plug | |
| Pin number | 3 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Rated voltage | 50 V | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
