NC3MD-LX-WT | Neutrik
XLR panel plug, 3 pole, silver-plated, 2.5 mm², AWG 14, NC3MD-LX-WT
Unit Price (€ / pc.)
8.9964 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
9.00 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9964 €
10 pcs.
8.3300 €
25 pcs.
7.7588 €
50 pcs.
7.0329 €
*incl. VAT plus shipping costs
Subject to prior sale

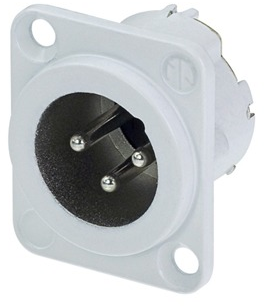

XLR Connector, NC3MD-LX-WT, NEUTRIK
3 pole male receptacle, solder cups, white painted housing, silver contacts.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
FEATURES
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- All metal housing offers best overall RF protection and electromagnetic shielding
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel plug | |
| Pin number | 3 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| Colour | white | |
| contact surface | silver-plated | |
| Cable cross-section | 2.5 mm² | |
| AWG cross-section | AWG 14 | |
| Rated voltage | 50 V | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
