NC3MD-LX-M3-BAG | Neutrik
XLR panel plug, 3 pole, silver-plated, 2.5 mm², AWG 14, zinc die casting, NC3MD-LX-M3-BAG
Unit Price (€ / pc.)
5.4264 € *
Available: 90 pcs.
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4264 €
10 pcs.
5.0575 €
50 pcs.
4.7362 €
100 pcs.
4.4625 €
*incl. VAT plus shipping costs
Subject to prior sale

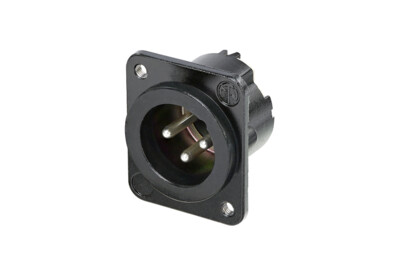

XLR panel plug connector, NC3MD-LX-M3-BAG, Neutrik
3 pole male receptacle, solder cups, black housing, silver contacts, M3 mounting holes. The DLX connector features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel plug | |
| Pin number | 3 pole | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Enclosure | zinc die casting | |
| Rated current | 16 A | |
| Colour | black | |
| AWG cross-section | AWG 14 | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage | 50 V | |
| Type of locking | latch locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
