NC3MD-LX-HE | Neutrik
XLR panel plug, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3MD-LX-HE
Unit Price (€ / pc.)
10.1626 € *
Available: 23 pcs.
Total Price:
10.16 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1626 €
10 pcs.
9.4129 €
25 pcs.
8.7584 €
50 pcs.
7.9373 €
*incl. VAT plus shipping costs
Subject to prior sale

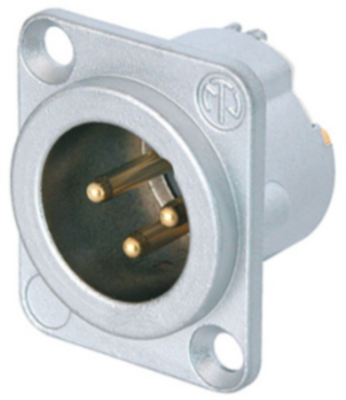

XLR plug, NC3MD-LX-HE, NEUTRIK
3 pole male receptacle, solder cups, velour chromium housing, gold contacts.
Features
- Extra high temperature resistant insulator material
- Valuable velour chromium plating of shell
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | snap lock | |
| Rated current | 16 A | |
| Version | panel plug | |
| Contact connection | solder connection | |
| Rated voltage | 50 V | |
| Pin number | 3 pole | |
| contact surface | gold-plated | |
| AWG cross-section | AWG 14 | |
| Assembly | PCB mounting | |
| Enclosure | metal | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
