NC3MBV-0 | Neutrik

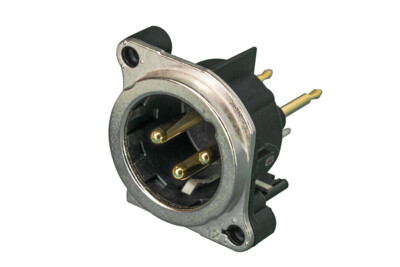

XLR panel plug, 3 pole, gold-plated, NC3MBV-0

Order No.: 39F1554
MPN:
NC3MBV-0
Series: B
NC3MBV-0 Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
3.3677 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
3.1178 €
50 pcs.
2.8917 €
100 pcs.
2.6061 €
*incl. VAT plus shipping costs
Subject to prior sale

XLR panel plug connector, NC3MBV-0, Neutrik

3 pole female XLR receptacle, grounding: without ground/shell contact, horizontal PCB mount. Most cost-effective round plastic body XLR PCB mount panel connector.

Features

  • Smallest XLR receptacles, highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Tulip type female contact
  • Housing flammability UL94V-0
Technical specifications
Filter Property Value
Contact connection solder connection
Rated current 6 A
contact surface gold-plated
Assembly PCB mounting
Rated voltage 50 V
Pin number 3 pole
Version panel plug
Type of locking latch locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
