NC3MBH-E | Neutrik

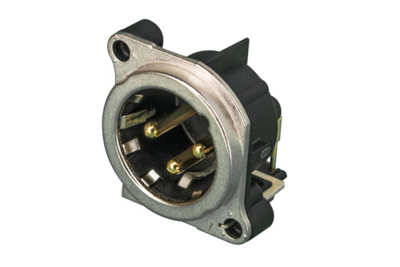

XLR panel plug, 3 pole, gold-plated, NC3MBH-E
Unit Price (€ / pc.)
4.2126 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.9032 €
25 pcs.
3.6295 €
50 pcs.
3.2963 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR-Chassis connector male, NC3MBH-E, Neutrik
3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, steel retention lug, horizontal PCB mount, additional ground contacts.
Features
- Five additional ground contacts
- Smallest XLR receptacles, highest packing density
- Housing flammability UL94V-0
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | latch locking | |
| Pin number | 3 pole | |
| Colour | black | |
| contact surface | gold-plated | |
| Rated voltage | 50 V | |
| Rated current | 6 A | |
| Contact connection | solder pin | |
| Assembly | PCB mounting | |
| Version | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
