NC3MBH-0 | Neutrik

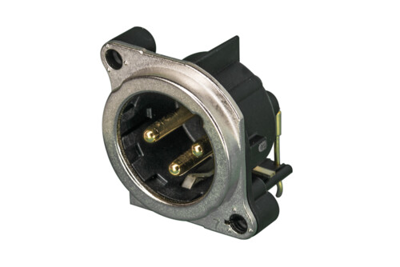

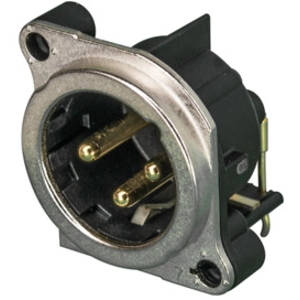

XLR panel plug, 3 pole, gold-plated, NC3MBH-0
Unit Price (€ / pc.)
2.6418 € *
Standard delivery time from the manufacturer is: 1 Week
XLR-Chassis connector male, NC3MBH-0, Neutrik
3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, steel retention lug, horizontal PCB mount.
Features
- Smallest XLR receptacles, highest packing density
- Housing flammability UL94V-0
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Technical specifications
| Rated voltage | 50 V | |
| Type of locking | latch locking | |
| contact surface | gold-plated | |
| Pin number | 3 pole | |
| Assembly | PCB mounting | |
| Version | panel plug | |
| Rated current | 6 A | |
| Contact connection | solder pin |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
