NC3MAH-LR | Neutrik

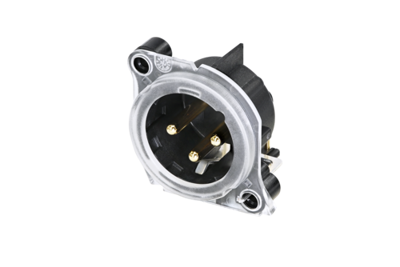

XLR panel plug, 3 pole, gold-plated, plastic, NC3MAH-LR
Unit Price (€ / pc.)
3.6176 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6176 €
10 pcs.
3.3439 €
50 pcs.
3.1059 €
100 pcs.
2.7965 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR-Chassis connector male, NC3MAH-LR, Neutrik
3 pole male XLR receptacle with Neutrik unique Halo feature and asymmetric non-metallic push. Grounding: separate ground contact to mating connector shell and front panel. Horizontal PCB mount. More than a connector, the `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector, integrating the completely new, patented light ring and asymmetric non-metallic push elements.
Features
- Smallest XLR receptacles, highest packing density
- Polished contact areas and hard gold plating
- Light ring offers innovative, forward-looking alternative to light pipes
- Improved visibility compared to light pipes
- Attractive signaling and design element
- Housing flammability UL94 V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Rated current | 6 A | |
| Version | panel plug | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Enclosure | plastic | |
| contact surface | gold-plated | |
| Type of locking | latch locking | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
