NC3MAH-0 | Neutrik

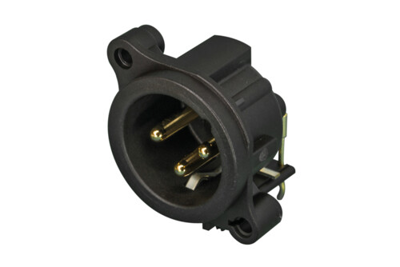

XLR panel plug, 3 pole, gold-plated, polyamide, NC3MAH-0
Unit Price (€ / pc.)
2.5942 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5942 €
10 pcs.
2.4157 €
50 pcs.
2.2253 €
100 pcs.
2.0230 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR-Chassis connector male, NC3MAH-0, Neutrik
3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, horizontal PCB mount. The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.
Features
- Smallest XLR receptacles, highest packing density
- Polished contact areas and hard gold plating
- Plastic housing
- Housing flammability UL94V-0
Technical specifications
| Version | Einbaustecker | |
| Colour | schwarz | |
| Enclosure | Polyamid | |
| Contact connection | Lötstift | |
| contact surface | vergoldet | |
| Assembly | Leiterplattenmontage | |
| Rated voltage | 50 V | |
| Rated current | 6 A | |
| Pin number | 3-polig | |
| Type of locking | Riegelverriegelung |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
