NC3FXX-HE | Neutrik
XLR jack, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3FXX-HE
Unit Price (€ / pc.)
11.4002 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.40 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4002 €
10 pcs.
10.5553 €
25 pcs.
9.8294 €
50 pcs.
8.9012 €
*incl. VAT plus shipping costs
Subject to prior sale

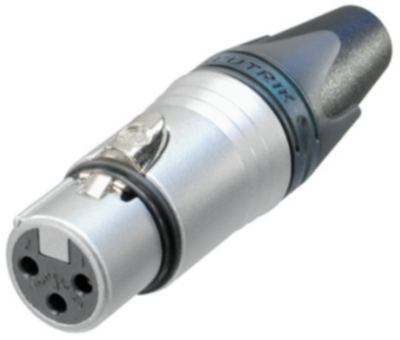

XX cable connector, NC3FXX-HE, NEUTRIK
3 pole female cable connector, velour-chromium housing and machined gold contacts. Extra high temperature resistant insulator material.
Features
- Valuable velour chromium plating of shell
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Female connector with improved solid metal latch which is larger and easier to handle
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Contact connection | solder connection | |
| Rated current | 16 A | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Cable diameter | 3.5-8 mm | |
| Rated voltage | 50 V | |
| Pin number | 3 pole | |
| Version | jack | |
| Enclosure | metal | |
| Type of locking | snap lock | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
