NC3FXX-EMC | Neutrik

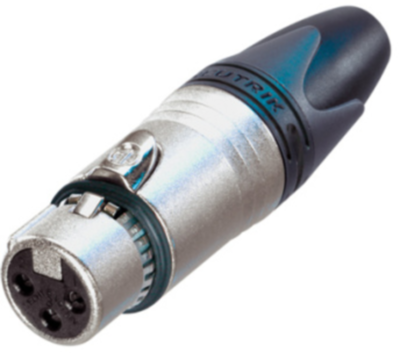

XLR jack, 3 pole, gold-plated, 0.75 mm², AWG 20, metal, NC3FXX-EMC
Unit Price (€ / pc.)
18.3498 € *
Available: 93 pcs.
Total Price:
18.35 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3498 €
10 pcs.
16.9932 €
25 pcs.
15.8151 €
50 pcs.
14.3395 €
*incl. VAT plus shipping costs
Subject to prior sale
EMC-XLR cable connector, NC3FXX-EMC, NEUTRIK
The EMC-XLR cable connector is designed to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.
Features
- Female connector with circumferential ground spring providing an accurate connection to the mating shell
- Chuck type strain relief system for secure clamping of cables
- Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
- Rugged zinc diecast shell, longlasting and dependable
- Boot with rubber gland gives high protection against bending stresses
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| contact surface | gold-plated | |
| Pin number | 3 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| Rated voltage | 50 V | |
| Cable cross-section | 0.75 mm² | |
| Enclosure | metal | |
| Rated current | 5 A | |
| Cable diameter | 3.5-8 mm | |
| AWG cross-section | AWG 20 | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
