NC3FXX-14-D | Neutrik
XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, NC3FXX-14-D
Unit Price (€ / pc.)
6.2356 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.8072 €
50 pcs.
5.4383 €
100 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale

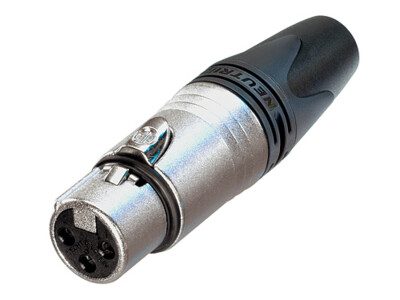

XLR cable connector, NC3FXX-14-D, Neutrik
3 pole female cable connector for 8 mm - 10 mm cable O.D. with Nickel housing and silver contacts.
Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
Technical specifications
| Rated voltage | 50 V | |
| Cable cross-section | 2.5 mm² | |
| Version | jack | |
| Pin number | 3 pole | |
| Rated current | 16 A | |
| Assembly | cable assembly | |
| AWG cross-section | AWG 14 | |
| Cable diameter | 8-10 mm | |
| contact surface | silver-plated |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
