NC3FXX-14-BAG-D | Neutrik
XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, zinc die casting, NC3FXX-14-BAG-D
Unit Price (€ / pc.)
12.2808 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
12.28 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2808 €
10 pcs.
11.4240 €
50 pcs.
10.5077 €
100 pcs.
9.5676 €
*incl. VAT plus shipping costs
**Subject to prior sale

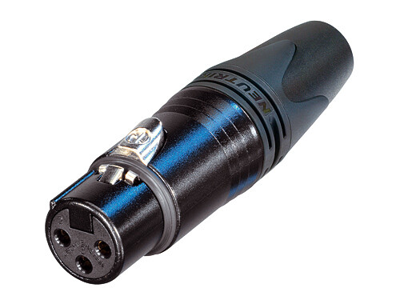

XLR-Chassis connector female, NC3FXX-14-BAG-D, Neutrik
3 pole female cable connector for 8 mm - 10 mm cable O.D. with black metal housing and silver contacts.
Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Rugged zinc diecast shell, longlasting and dependable
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Additional ground spring contacts for better shell ground continuity
- Boot with polyurethane gland gives high protection to cable bending stresses
Technical specifications
| Colour | black | |
| Cable diameter | 8-10 mm | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| AWG cross-section | AWG 14 | |
| Enclosure | zinc die casting | |
| Rated current | 16 A | |
| Contact connection | solder connection | |
| Cable cross-section | 2.5 mm² | |
| Pin number | 3 pole | |
| Version | jack | |
| Rated voltage | 50 V |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
