NC3FXCC | Neutrik
XLR jack, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3FXCC
Unit Price (€ / pc.)
12.7330 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.73 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7330 €
10 pcs.
11.7096 €
50 pcs.
10.6624 €
100 pcs.
9.5914 €
*incl. VAT plus shipping costs
Subject to prior sale

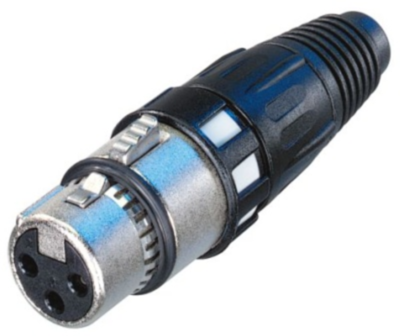

XLR cable connector, NC3FXCC, NEUTRIK
3 pole female cable connector, RF-protected, gold contacts.
Features
- Rugged zinc diecast shell, long lasting and durable
- Boot with rubber gland gives high protection against bending stresses
- Chuck type strain relief system for secure clamping of cables
Technical specifications
| Contact connection | solder connection | |
| Rated voltage | 50 V | |
| Enclosure | metal | |
| Pin number | 3 pole | |
| Version | jack | |
| Cable diameter | 5.4-6.2 mm | |
| Rated current | 16 A | |
| contact surface | gold-plated | |
| AWG cross-section | AWG 14 | |
| Type of locking | snap lock | |
| Cable cross-section | 2.5 mm² | |
| Assembly | cable assembly |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
