NC3FX-TOP | Neutrik
XLR jack, 3 pole, gold-plated, 1.5 mm², AWG 16, metal, NC3FX-TOP
No longer available from manufacturer
Unit Price (€ / pc.)
12.2808 € *
Available: 1 pcs.

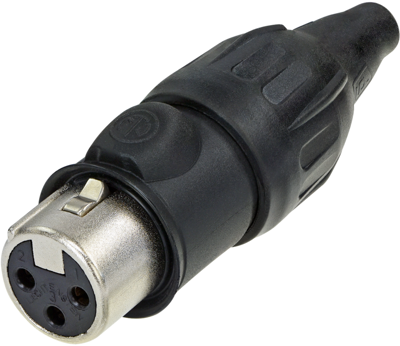

Female cable connector, NC3FX-TOP, Neutrik
3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.
Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Uses high impact UV resistant materials
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| AWG cross-section | AWG 16 | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage | 50 V | |
| contact surface | gold-plated | |
| Pin number | 3 pole | |
| Type of locking | snap lock | |
| Enclosure | metal | |
| Rated current | 10 A | |
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Cable diameter | 5-8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
