NC3FX-SPEC | Neutrik
XLR jack, 3 pole, gold-plated, 2.5 mm², AWG 14, zinc die casting, NC3FX-SPEC
Unit Price (€ / pc.)
15.9222 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.92 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9222 €
10 pcs.
14.8393 €
50 pcs.
13.8992 €
100 pcs.
13.0781 €
*incl. VAT plus shipping costs
Subject to prior sale

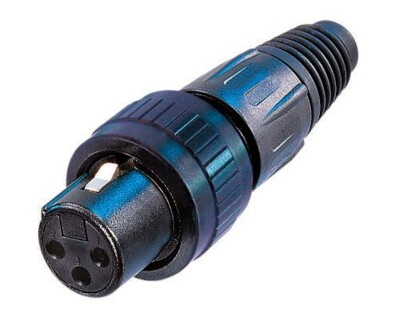

XLR cable connector, NC3FX-SPEC, Neutrik
Solid 3 pole female cable connector with locking ring for highest security of connection and uninterrupted RF-screening. Female XLR cable connector with solid `coax` shell. A small grub screw can make the connection to the microphone and Gooseneck quasi theft proof. Black metal housing with gold contacts.
Features
- Solid female cable connector with locking ring for highest security of connection
- Uninterrupted EMI protection
- Protects against accidental disconnects
- Thief-prove, grub screw secure connector onto microphone or gooseneck
- Avoids movements and noises
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
Technical specifications
| Rated voltage | 50 V | |
| Contact connection | solder connection | |
| Cable cross-section | 2.5 mm² | |
| Version | jack | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated current | 16 A | |
| Assembly | cable assembly | |
| AWG cross-section | AWG 14 | |
| Enclosure | zinc die casting | |
| Cable diameter | 3.5-8 mm | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
