NC3FX-HD | Neutrik
XLR coupling, Straight, 3, Soldered connection
Order No.: 70F1700
EAN: 4099889857276
MPN:
NC3FX-HD
This item is no longer available.
As an alternative, we recommend the following item:
XLR jack, 3 pole, gold-plated, 1.5 mm², AWG 16, metal, NC3FX-TOP
Order No.: 70F1761
Manufacturer: Neutrik
per pc. 12.2808 € *

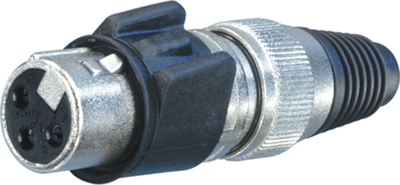

XLR cable connector, NC3FX-HD, NEUTRIK
3 pole female cable connector, "heavy duty", all metal design, gold contacts.
Features
- "Heavy duty" cable connector for outdoor use
- Gold contacts
- Boot with rubber gland gives high protection against bending stresses
- Chuck type strain relief system for secure clamping of cables
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Contact connection | solder connection | |
| Rated current | 16 A | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Rated voltage | 50 V | |
| Pin number | 3 pole | |
| Version | jack | |
| Enclosure | metal | |
| Type of locking | snap lock | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
