NC3FX-BAG | Neutrik

XLR jack, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3FX-BAG

Order No.: 70F1812
EAN: 4099889857641
MPN:
NC3FX-BAG
Series: X
NC3FX-BAG Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
6.5093 € *
Available: 75 pcs.
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5093 €
10 pcs.
5.7477 €
100 pcs.
5.0337 €
250 pcs.
4.8314 €
1000 pcs.
4.5339 €
*incl. VAT plus shipping costs
Subject to prior sale

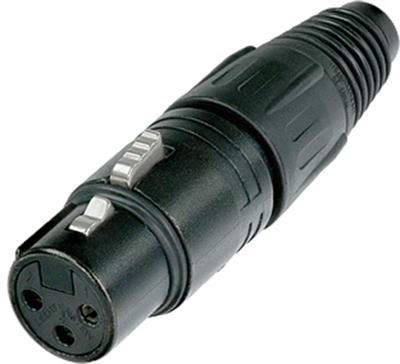

XLR cable connector, NC3FX-BAG, NEUTRIK

3 pole female cable connector, black metal housing and silver contacts. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Features

  • Rugged zinc diecast shell, long lasting and durable
  • Boot with rubber gland gives high protection against bending stresses
  • Chuck type strain relief system for secure clamping of cables
Technical specifications
Version jack
Pin number 3 pole
Type of locking snap lock
Contact connection solder connection
Enclosure metal
Colour black
contact surface silver-plated
Assembly cable assembly
Cable cross-section 2.5 mm²
AWG cross-section AWG 14
Cable diameter 3.5-8 mm
Rated voltage 50 V
Rated current 16 A
Logistics
Country of origin LI
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
