NC3FRX-B | Neutrik

XLR jack, 3 pole, gold-plated, 2.5 mm², AWG 14, metal, NC3FRX-B

Order No.: 80F5096
EAN: 4099889858266
MPN:
NC3FRX-B
Series: RX
NC3FRX-B Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
13.3399 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.3399 €

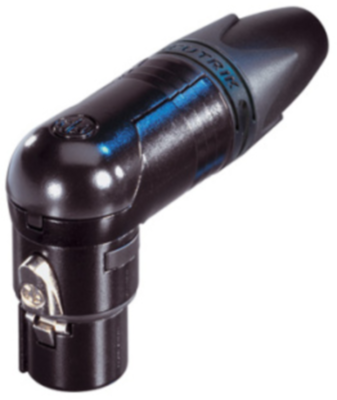

XLR cable connector, NC3FRX-B, NEUTRIK

3 pole right angle female cable connector, black metal housing, gold contacts.

Features

  • Extra slim right-angle connector
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • 5 selectable cable outlet positions
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Sleek and ergonomic design - valuable and handy
Technical specifications
Version jack
Pin number 3 pole
Type of locking snap lock
Contact connection solder connection
Enclosure metal
Colour black
contact surface gold-plated
Assembly cable assembly
Cable cross-section 2.5 mm²
AWG cross-section AWG 14
Cable diameter 3.5-8 mm
Rated voltage 50 V
Rated current 16 A
Logistics
Country of origin LI
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
