NC3FDX-TOP | Neutrik
XLR panel socket, 3 pole, gold-plated, NC3FDX-TOP
Unit Price (€ / pc.)
12.8044 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.80 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8044 €
10 pcs.
11.8524 €
25 pcs.
11.0432 €
50 pcs.
10.0079 €
*incl. VAT plus shipping costs
Subject to prior sale

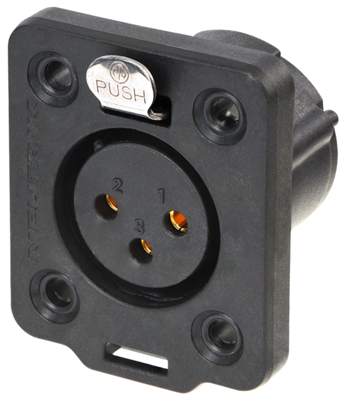

XLR receptacle, NC3FDX-TOP, NEUTRIK
3 pole female chassis connector, TRUE OUTDOOR PROTECTION (TOP).
Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Uses high impact UV-resistant materials
- Maintains sealing when in use and when disconnected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | snap lock | |
| Pin number | 3 pole | |
| contact surface | gold-plated | |
| Rated voltage | 50 V | |
| Rated current | 16 A | |
| Contact connection | solder connection | |
| Assembly | front mounting | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
