NC3FDX-EMC-SPEC | Neutrik

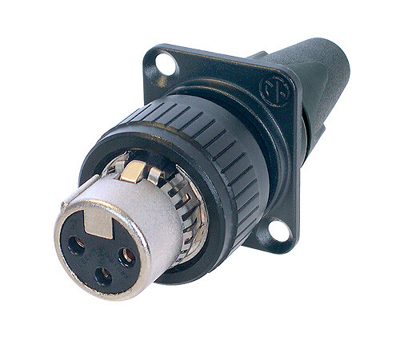

XLR jack, 3 pole, gold-plated, zinc die casting, NC3FDX-EMC-SPEC

Order No.: 39F1378
MPN:
NC3FDX-EMC-SPEC
Series: XX
NC3FDX-EMC-SPEC Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
25.5255 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
25.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.5255 €

XLR-Chassis connector female, NC3FDX-EMC-SPEC, Neutrik

The EMC-XLR is a specifically designed to give enhanced RF screening for critical applications in live performance and recording where there is a particular problem with radio transmission or a mobile phone. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitor acts as a high-pass filter with a cut-off frequency around 10 MHz. An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection. For panel mount applications of the EMC-XLR, we offer a special cable version with a D-flange for mounting into a panel.

Features

  • 3 pole female XLR panel mount connector with integrated capacitive shield to shell connection
  • Circumferential ground spring providing an accurate connection to the mating shell
  • Avoid ground loops as there is no LF-shield connection to ground
  • Chuck type strain relief system for secure clamping of cables
  • Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
  • Rugged zinc diecast shell, long lasting and durable
  • Boot with rubber gland gives high protection against bending stresses
Technical specifications
Rated voltage 50 V
Type of locking latch locking
contact surface gold-plated
Pin number 3 pole
Assembly cable assembly
Enclosure zinc die casting
Colour black
Version jack
Rated current 5 A
Contact connection solder connection
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
