NC3FDM3-L-B-1 | Neutrik
XLR panel socket, 3 pole, gold-plated, 2.5 mm², AWG 14, zinc die casting, NC3FDM3-L-B-1
Unit Price (€ / pc.)
8.9488 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.95 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9488 €
10 pcs.
8.2824 €
25 pcs.
7.7112 €
50 pcs.
6.9972 €
*incl. VAT plus shipping costs
Subject to prior sale

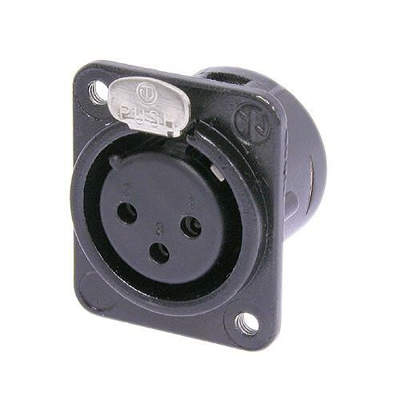

XLR-Chassis connector female, NC3FDM3-L-B-1, Neutrik
3 pole female receptacle, solder cups, black metal housing, gold contacts, M3 mounting holes. UL recognized component.
Features
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Contact connection | solder connection | |
| Rated current | 16 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Assembly | chassis mounting | |
| Rated voltage | 50 V | |
| Pin number | 3 pole | |
| Version | panel socket | |
| Enclosure | zinc die casting | |
| Type of locking | latch locking | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
