NC3FBV2-SW | Neutrik

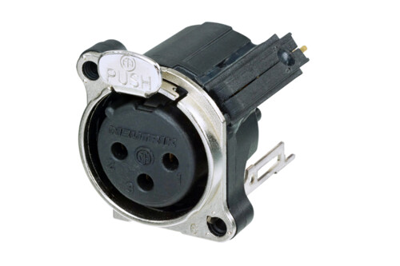

XLR panel socket, 3 pole, gold-plated, NC3FBV2-SW
Unit Price (€ / pc.)
11.8048 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.80 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8048 €
10 pcs.
10.9361 €
25 pcs.
10.1745 €
50 pcs.
9.2225 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR-Chassis connector female, NC3FBV2-SW, Neutrik
3 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount. The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact. UL recognized component.
Features
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Fitted with changeover switch
- Switch activated by inserting the cable connector
- Fork type female contact
- Normally open, normally closed (NO - NC) contact
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | latch locking | |
| Pin number | 3 pole | |
| contact surface | gold-plated | |
| Rated voltage | 50 V | |
| Rated current | 6 A | |
| Assembly | PCB mounting | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
