NC3FBV1 | Neutrik

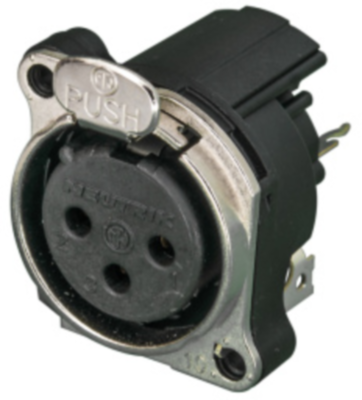

XLR panel socket, 3 pole, gold-plated, metal, NC3FBV1
Unit Price (€ / pc.)
3.5462 € *
Standard delivery time from the manufacturer is: On Request
XLR receptacle, NC3FBV1, NEUTRIK
3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount.
Features
- Smallest XLR receptacles, highest packing density
- Tulip type female contact
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Technical specifications
| Rated voltage | 50 V | |
| Type of locking | snap lock | |
| contact surface | gold-plated | |
| Pin number | 3 pole | |
| Assembly | PCB mounting | |
| Enclosure | metal | |
| Colour | black | |
| Version | panel socket | |
| Rated current | 6 A | |
| Contact connection | solder connection |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
