NC3FBH2 | Neutrik

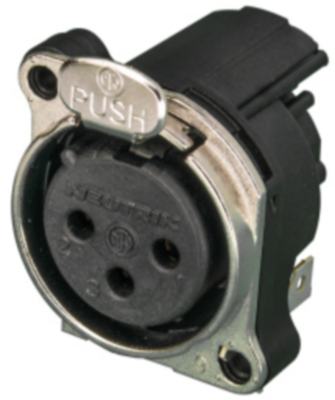

XLR panel socket, 3 pole, gold-plated, metal, NC3FBH2

Order No.: 80F5080
EAN: 4099889858105
MPN:
NC3FBH2
Series: B
NC3FBH2 Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
4.6767 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.68 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6767 €
10 pcs.
4.3197 €
50 pcs.
3.9627 €
100 pcs.
3.6057 €
*incl. VAT plus shipping costs
Subject to prior sale

XLR receptacle, NC3FBH2, NEUTRIK

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount.

Features

  • Smallest XLR receptacles, highest packing density
  • Tulip type female contact
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Technical specifications
contact surface gold-plated
Contact connection solder connection
Enclosure metal
Colour black
Rated current 6 A
Rated voltage 50 V
Pin number 3 pole
Version panel socket
Type of locking snap lock
Assembly PCB mounting
Logistics
Customs tariff number 85366990
Country of origin LI
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
