NC3FBH2-E | Neutrik

XLR-Chassis connector, female

Order No.: 39F1363
MPN:
NC3FBH2-E
Series: B
NC3FBH2-E Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
3.7961 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7961 €

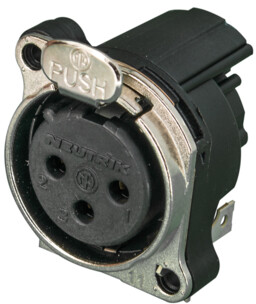

XLR-Chassis connector female, NC3FBH2-E, Neutrik

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, additional ground contacts. UL recognized component.

Features

  • Five additional ground contacts
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Housing flammability UL94V-0
  • Smallest XLR receptacles, highest packing density
  • Tulip type female contact
Technical specifications
Rated voltage 50 V
Type of locking latch locking
Pin number 3 pole
Assembly PCB mounting
Version panel socket
Rated current 6 A
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
