NC3FAH2-LR-DAE | Neutrik

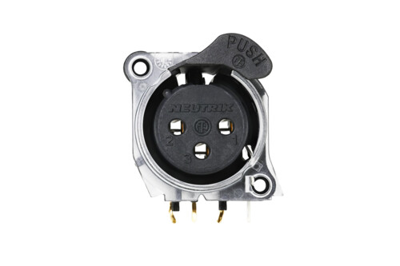

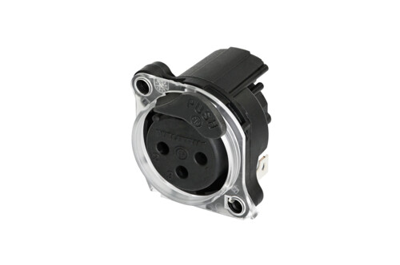

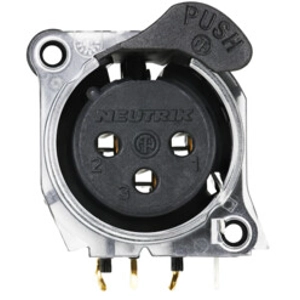

XLR panel socket, 3 pole, gold-plated, plastic, NC3FAH2-LR-DAE
Unit Price (€ / pc.)
3.8794 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.88 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8794 €
10 pcs.
3.5938 €
25 pcs.
3.3439 €
50 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR-Chassis connector female, NC3FAH2-LR-DAE, Neutrik

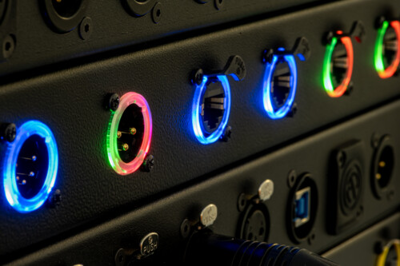

3 pole female XLR receptacle with Neutrik unique Halo feature and asymmetric non-metallic push. Grounding: separate ground contact to mating connector shell and front panel. Horizontal PCB mount. More than a connector, the `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector, integrating the completely new, patented light ring and asymmetric non-metallic push elements. Tulip type contacts with hard gold plating and polished contact areas. Light ring for status indication, etc. Improved EMC and ESD performance via asymmetric non-metallic push.
Features
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Tulip type female contact
- Compound material improves ESD performance
- Vertical space saving compared to standard push tabs
- Standard cutout / no additional holes for light pipes required
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Rated current | 6 A | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Pin number | 3 pole | |
| Version | panel socket | |
| Enclosure | plastic | |
| Type of locking | latch locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
