NC3FAAV1-DA | Neutrik

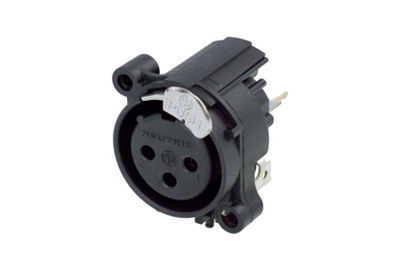

XLR panel socket, 3 pole, gold-plated, NC3FAAV1-DA
Unit Price (€ / pc.)
1.1900 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1900 €
10 pcs.
1.0948 €
50 pcs.
1.0234 €
100 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR-Chassis connector female, NC3FAAV1-DA, Neutrik
3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount. Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. With the asymmetric push tab an additional space saving of appr. 20 % can be achieved. Flammability rating UL94HB. UL recognized component.
Features
- Selective gold plated contact and PCB termination area for best conductivity and solderability
- "Tulip" type contact design with high contact pressure for highest durability
- For space sensitive applications - 20 % space saving
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | gold-plated | |
| Version | panel socket | |
| Assembly | PCB mounting | |
| Rated current | 6 A | |
| Pin number | 3 pole | |
| Contact connection | solder connection | |
| Rated voltage | 50 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
