NC3FAAH2 | Neutrik

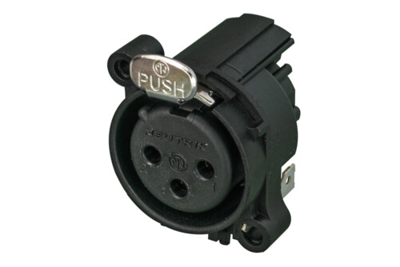

XLR panel socket, 3 pole, gold-plated, polyamide, NC3FAAH2
Unit Price (€ / pc.)
2.2848 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
2.1301 €
50 pcs.
1.9635 €
100 pcs.
1.7850 €
*incl. VAT plus shipping costs
**Subject to prior sale
XLR-Chassis connector female, NC3FAAH2, Neutrik
3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount. Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Flammability rating UL94HB. UL recognized component.
Features
- Selective gold plated contact and PCB termination area for best conductivity and solderability
- "Tulip" type contact design with high contact pressure for highest durability
Technical specifications
| Version | Einbaubuchse | |
| Colour | schwarz | |
| Enclosure | Polyamid | |
| Contact connection | Lötstift | |
| contact surface | vergoldet | |
| Assembly | Leiterplattenmontage | |
| Rated voltage | 50 V | |
| Rated current | 6 A | |
| Pin number | 3-polig | |
| Type of locking | Riegelverriegelung |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
