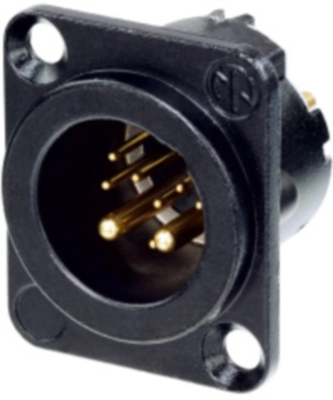

NC10MD-LX-B | Neutrik
XLR panel plug, 10 pole, gold-plated, 2.5 mm², AWG 14, metal, NC10MD-LX-B
Order No.: 70F1741
EAN: 4099889857566
MPN:
NC10MD-LX-B
Unit Price (€ / pc.)
24.5140 € *
Available: 14 pcs.
Total Price:
24.51 € *
Price list
Quantity
Price per unit*
1 pcs.
24.5140 €
10 pcs.
22.7647 €
25 pcs.
21.2415 €
50 pcs.
19.3137 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR connector, NC10MD-LX-B, NEUTRIK
10 pole male D-size receptacle, black chrome metal housing, duplex ground contact. Easy to assemble 10 pole XLR connectors with secure locking and proven Neutrik chuck type strain relief. Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Receptacle with duplex ground contact for excellent signal integrity
- Superior ruggedness compared to RJ45 type connectors
- D-size housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel plug | |
| Pin number | 10 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| Enclosure | metal | |
| Colour | black | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Cable cross-section | 2.5 mm² | |
| AWG cross-section | AWG 14 | |
| Rated voltage | 50 V | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
