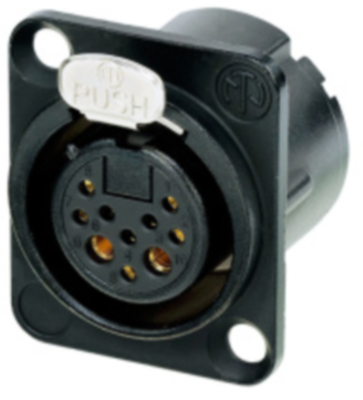

NC10FD-LX-B | Neutrik
XLR panel socket, 10 pole, gold-plated, 2.5 mm², AWG 14, metal, NC10FD-LX-B
Order No.: 70F1740
EAN: 4099889857559
MPN:
NC10FD-LX-B
Unit Price (€ / pc.)
27.1439 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
27.14 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1439 €
10 pcs.
25.2042 €
25 pcs.
23.5263 €
50 pcs.
21.3843 €
*incl. VAT plus shipping costs
Subject to prior sale
D-coupling, NC10FD-LX-B, NEUTRIK
8 + 2 pole female D-size receptacle, black chrome metal housing, duplex ground contact. Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Receptacle with duplex ground contact for excellent signal integrity
- Superior ruggedness compared to RJ45 type connectors
- D-size housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | metal | |
| Version | panel socket | |
| Pin number | 10 pole | |
| Cable cross-section | 2.5 mm² | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Type of locking | snap lock | |
| Colour | black | |
| Rated current | 7.5 A | |
| Rated voltage | 50 V | |
| AWG cross-section | AWG 14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
