NLT8FXX-BAG | Neutrik

Cable connector, female

Order No.: 39F1491
EAN: 7613187013324
MPN:
NLT8FXX-BAG
Series: STXX
NLT8FXX-BAG Neutrik Speaker Connectors
Image may differ
Unit Price (€ / pc.)
55.4302 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
55.43 € *
Price list
Quantity
Price per unit*
1 pcs.
55.4302 €
2 pcs.
51.5508 €
5 pcs.
47.4215 €
10 pcs.
43.1613 €
*incl. VAT plus shipping costs
**Subject to prior sale

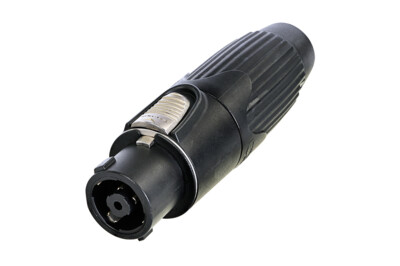

Cable connector, NLT8FXX-BAG, Neutrik

8 pole female cable connector, metal housing, chuck type strain relief, solder contacts. This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984. The speakON is especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable features an all metal housing.

Features

  • Current rating 30 A rms
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
Technical specifications
Version jack
Pin number 8 pole
Contact connection solder connection
Type of locking quick locking
Assembly cable assembly
Rated voltage 250 V
Rated current 30 A
Logistics
Customs tariff number 85366990
Country of origin HU
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
