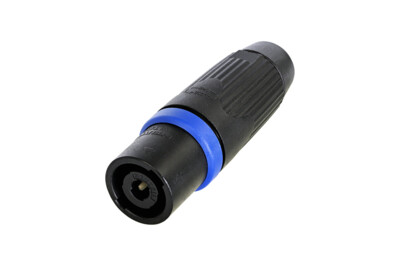

NLT4MXX-BAG | Neutrik

Cable connector, male

Order No.: 39F1488
EAN: 7613187013430
MPN:
NLT4MXX-BAG
Series: STXX
NLT4MXX-BAG Neutrik Speaker Connectors
Image may differ
Unit Price (€ / pc.)
34.8908 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
34.89 € *
Price list
Quantity
Price per unit*
1 pcs.
34.8908 €
5 pcs.
32.4513 €
10 pcs.
29.8571 €
25 pcs.
27.1677 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable connector, NLT4MXX-BAG, Neutrik

4 pole male cable connector, black metal housing, chuck type strain relief. This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. The speakON is especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable features an all metal housing.

Features

  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
  • Extra large solder contacts for up to 6 mm² (AWG 10) wires
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
Technical specifications
Version plug
Pin number 4 pole
Contact connection solder connection
Type of locking quick locking
Assembly cable assembly
Rated voltage 250 V
Rated current 30 A
Logistics
Customs tariff number 85366990
Country of origin HU
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
