NLT4FXX | Neutrik

Cable connector, female

Order No.: 39F1483
EAN: 7613187013409
MPN:
NLT4FXX
Series: STXX
NLT4FXX Neutrik Speaker Connectors

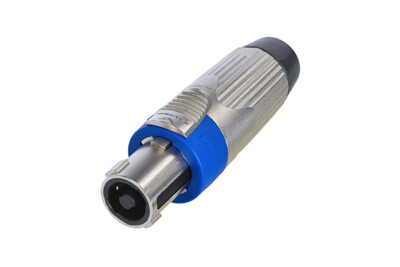

Image may differ
Unit Price (€ / pc.)
33.8198 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
33.82 € *
Price list
Quantity
Price per unit*
1 pcs.
33.8198 €
5 pcs.
31.4517 €
10 pcs.
28.9289 €
25 pcs.
26.3228 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable connector, NLT4FXX, Neutrik

4 pole female cable connector, metal housing, chuck type strain relief. This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. The speakON is especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable features an all metal housing.

Features

  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
  • Extra large solder contacts for up to 6 mm² (AWG 10) wires
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
Technical specifications
Version jack
Pin number 4 pole
Contact connection solder connection
Type of locking quick locking
Assembly cable assembly
Rated voltage 250 V
Rated current 30 A
Logistics
Customs tariff number 85366990
Country of origin HU
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
