NLT4FPXX | Neutrik

Chassis Connector, female

Order No.: 39F1481
MPN:
NLT4FPXX
Series: STXX
NLT4FPXX Neutrik Speaker Connectors
Image may differ
Unit Price (€ / pc.)
27.5723 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
27.57 € *
Price list
Quantity
Price per unit*
1 pcs.
27.5723 €
10 pcs.
25.6445 €
25 pcs.
23.5858 €
50 pcs.
21.4676 €
*incl. VAT plus shipping costs
**Subject to prior sale

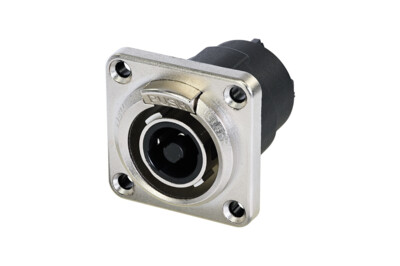

Chassis Connector, NLT4FPXX, Neutrik

4 pole female chassis connector, metal housing, solder contacts, countersunk thru holes. This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. The speakON is especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable features an all metal housing.

Features

  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
Technical specifications
Version panel socket
Pin number 4 pole
Contact connection solder connection
Type of locking quick locking
Assembly panel mounting
Rated voltage 250 V
Rated current 30 A
Logistics
Customs tariff number 85366990
Country of origin HU
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
