NL4MP | Neutrik
Speakers panel-mount socket, Lautsprechereinbaubuchse, 4-polig, 250 V, NL4MP
Order No.: 40F1386
EAN: 4099889859164
MPN:
NL4MP
This item is no longer available.
As an alternative, we recommend the following item:

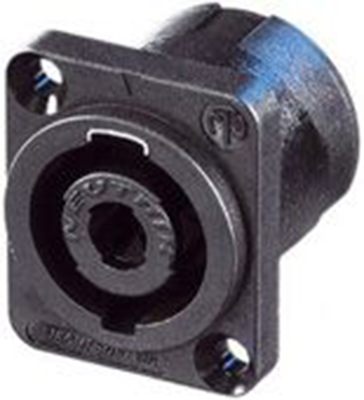

Speaker panel-mount socket, NL4MP, NEUTRIK
4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. This product features a unique metal locking system, making contact only once fully locked. The speakON receptacle is robust, versatile and easy to terminate.
Features
- Precise keyway for secure mating
- Metal insert in locking area
- Glass reinforced materials make it extremely robust and dependable
- Accurate twist lock latching system
Technical specifications
| Version | plug | |
| Pin number | 4 pole | |
| Contact connection | flat plug connection | |
| Type of locking | quick locking | |
| Assembly | built-in mounting | |
| Rated voltage | 250 V | |
| Rated current | 40 A |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
