NL4MDXX-H-2 | Neutrik

4 pole Speaker connector, female

Order No.: 39F1474
MPN:
NL4MDXX-H-2
Series: speakON
NL4MDXX-H-2 Neutrik Speaker Connectors

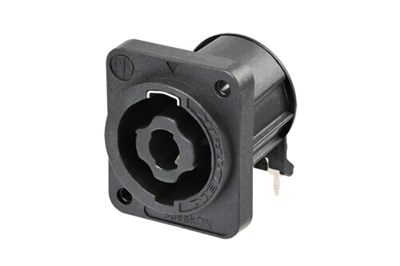

Image may differ
Unit Price (€ / pc.)
4.6410 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.2959 €
25 pcs.
3.9984 €
50 pcs.
3.6295 €
*incl. VAT plus shipping costs
Subject to prior sale

Speaker connector, NL4MDXX-H-2, Neutrik

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. 4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), horizontal PCB mount. The speakON panel mount connector is the standard chassis connector for loudspeaker / amplifier interconnection. It features a unique metal locking system, making contact only once fully locked. The speakON receptacle is robust, versatile and easy to terminate.

Features

  • Precise keyway for secure mating
  • Metal insert in locking area
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Accurate twist lock latching system
Technical specifications
Filter Property Value
Version panel plug
Pin number 4 pole
Assembly PCB mounting
Type of locking quick locking
Rated current 25 A
Rated voltage 250 V
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
