NRJ4HF-1 | Neutrik
6.35 mm jack panel socket, 2 pole (mono), PCB connection, PA, NRJ4HF-1
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.7140 €
50 pcs.
0.6545 €
100 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale

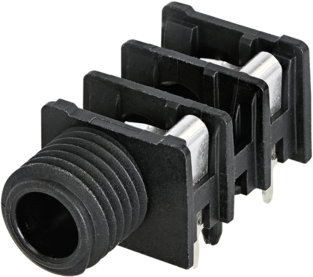

Mono jack, NRJ4HF-1, Neutrik
1/4" mono jack, switched, fully threaded nose, sleeve contact/frontpanel connection. Horizontal PCB panel mount jack featuring high board packing density by mounting on 15.88 mm (0.625 inch) minimum centers in rows or arrays.
Features
- High boarded packing densities
- A retentions spring ensures optimum grip on inserted plugs, avoiding the chance of lost connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Shell Material | PA | |
| Contact connection | PCB connection | |
| Pin Diameter | 6.35 mm | |
| Colour | black | |
| Product type | jack panel socket | |
| Assembly | rear mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
