NR3F-S | Neutrik

Panel socket, 3 pole, solder cup, push pull, straight, NR3F-S

Order No.: 70F184
EAN: 4099889733471
MPN:
NR3F-S
Series: nanoCon

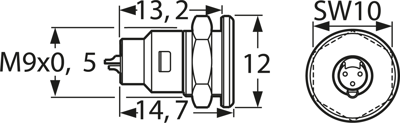

NR3F-S Neutrik Other Circular Connectors Image 1

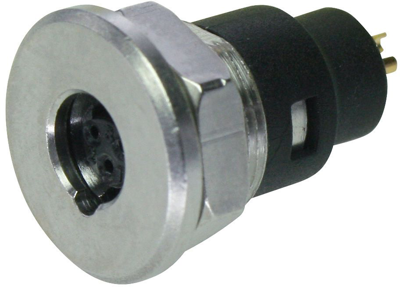

NR3F-S Neutrik Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.4708 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.47 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4708 €
10 pcs.
12.4712 €
25 pcs.
11.6144 €
50 pcs.
10.5196 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector series NanoCon, type NEUTRIK N.

3-pole, with metal interlock, gold-plated contacts, metal housing; Rated current: 2.0 A. Rated voltage: 50 V. Contact resistance: max. 12 mohm. Dielectric strength: 1000 VDC. Insulation resistance: min. 1.0 Gohm. Conductor cross-section: 0.2 mm² solid wire/0.14 mm² stranded wire (AWG 24/26). Operating temperatures: –30 to +80 °C.

With solder contacts, type NR3.

Type: NR3F–S, chassis socket

Technical specifications
Filter Property Value
Cable cross-section 0.14-0.2 mm²
contact surface gold-plated
Type of locking push pull
Shell Material brass
Version panel socket
Orientation straight
Assembly panel mounting
Additional parts equipped
Pin number 3 pole
Contact connection solder cup
Logistics
Property Value
Country of origin LI
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
