NE8MC6-MO | Neutrik
Plug, RJ45, 8 pole, 8P8C, Cat 6, IDC connection, cable assembly, NE8MC6-MO
Unit Price (€ / pc.)
13.5422 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
13.54 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5422 €
10 pcs.
12.9948 €
50 pcs.
12.6735 €
100 pcs.
11.9000 €
*incl. VAT plus shipping costs
Subject to prior sale

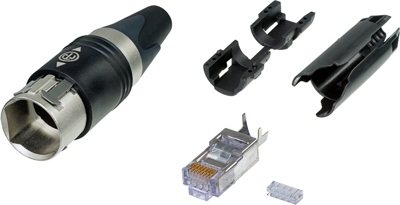

Cable plug set, NE8MC6-MO, NEUTRIK
The set NE8MC6-MO includes a cable plug carrier offering a robust metal shell with Push-Pull locking system, proven Neutrik chuck-type strain relief and a CAT6 RJ45 plug. The set can accommodate STP und UTP cables with O.D. of 5.5 to 6.5 mm and gauge of AWG 22 to 28 solid or stranded wire. This self-termination version is water-protected according to IP65.
Features
- Push Pull mating - secure and proven locking system
- Shielded system - high noise immunity and EMI protection
- Unique Neutrik chuck-type strain relief
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | cable assembly | |
| Pin number | 8 pole | |
| Version | plug | |
| RJ-Version | RJ45 | |
| Category | Cat 6 | |
| Pole image | 8P8C | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
