NE8FDV-Y110-B | Neutrik
Socket, RJ45, 8 pole, 8P8C, Cat 5e, IDC connection, flange mounting, NE8FDV-Y110-B
Unit Price (€ / pc.)
13.4827 € *
Available: 40 pcs.
Leadtime: On Request **
Total Price:
13.48 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4827 €
50 pcs.
12.6140 €
100 pcs.
11.8405 €
*incl. VAT plus shipping costs
**Subject to prior sale

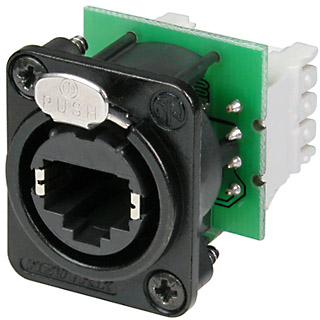

RJ45 receptacle, NE8FDV-Y110-B, NEUTRIK
Panel mount receptacle with IDC 110 punch down terminals, black D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included. Suitable for panel mount and the installer market.
Features
- Mountable from the front or rear of the panel
- Approved latch lock system
- Selectable ground - panel connection
- Easy and quick mounting using 110 type punch down terminals
Applications
- Pro audio
- Video
- Network applications
- Entertainment industry
Technical specifications
| Pole image | 8P8C | |
| Assembly | flange mounting | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Version | socket | |
| Category | Cat 5e | |
| Connection | IDC connection |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
